°ü Á¢ÇÕ ºÎ¼ÓÇ°
°ü Á¢ÇÕ ºÎ¼ÓÇ°

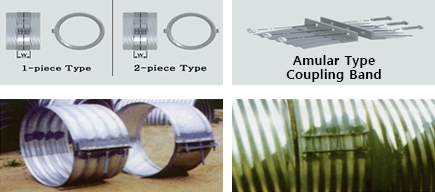

TYPE | PLATE OF BAND |
DIAMETER | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
300 | 400 | 450 | 600 | 800 | 1000 | 1200 | 1350 | 1500 | 1650 | 1800 | ||
D-1 | THICKNESS T (mm) |
1.6 | - | |||||||||
WIDTH W (mm) |
270 | - | ||||||||||
D-2 | THICKNESS T (mm) |
- | 2.0 | 2.7 | ||||||||
WIDTH W (mm) |
- | 410 | 410 | |||||||||
S-1 | THICKNESS T (mm) |
1.6 & 2.0 | 1.6, 2.0 & 2.7 | 1.6, 2.0, 2.7 & 3.2 | ||||||||
WIDTH W (mm) |
410 | 410 | 410 | |||||||||
S-2 | THICKNESS T (mm) |
- | 3.2 | |||||||||
WIDTH W (mm) |
- | 410 |
TYPE | PLATE OF BAND |
DIAMETER | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
900 | 1000 | 1200 | 1350 | 1500 | 1650 | 1800 | 2000 | 2200 | 2400 | 2600 | ||
S-3 | THICKNESS T (mm) |
1.6, 2.0, 2.7 & 3.2 | - | |||||||||
WIDTH W (mm) |
460 | - | ||||||||||
S-4 | THICKNESS T (mm) |
- | 2.3.2 | |||||||||
WIDTH W (mm) |
- | 460 |
(mm) | Type "A" TEE | Type "B" TEE | 45¡É Elbow | 90¡É Elbow | ||||||
---|---|---|---|---|---|---|---|---|---|---|
A | B | TL | A | B | TL | A | TL | A | TL | |
300 | 1000 | 300 | 1300 | 800 | 400 | 1200 | 600 | 1200 | 650 | 1300 |
400 | 1000 | 300 | 1300 | 1200 | 600 | 1800 | 600 | 1200 | 700 | 1400 |
500 | 1000 | 300 | 1300 | 1200 | 600 | 1800 | 600 | 1200 | 750 | 1500 |
600 | 1000 | 300 | 1300 | 1200 | 600 | 1800 | 600 | 1200 | 800 | 1600 |
700 | 1000 | 300 | 1300 | 1200 | 600 | 1800 | 700 | 1400 | 900 | 1800 |
800 | 1000 | 300 | 1300 | 1800 | 900 | 2700 | 700 | 1400 | 1000 | 2000 |
900 | 1000 | 300 | 1300 | 1800 | 900 | 2700 | 700 | 1400 | 1100 | 2200 |
1000 | 1000 | 300 | 1300 | 1800 | 900 | 2700 | 700 | 1400 | 1200 | 2400 |
1100 | 1000 | 300 | 1300 | 1800 | 900 | 2700 | 700 | 1400 | 1200 | 2400 |
1200 | 1000 | 300 | 1300 | 1800 | 900 | 2700 | 900 | 1800 | 1400 | 2800 |
1350 | 1000 | 300 | 1300 | 1350 | 1200 | 3600 | 1000 | 2000 | 1600 | 3000 |
1500 | 1000 | 300 | 1300 | 2400 | 1200 | 3600 | 1100 | 2200 | 1750 | 3500 |
1650 | 1000 | 300 | 1300 | 2400 | 1200 | 3600 | 1200 | 2400 | 1800 | 3600 |
1800 | 1000 | 300 | 1300 | 3000 | 1500 | 4500 | 1300 | 2600 | 2050 | 4100 |
2000 | 1000 | 300 | 1300 | 3000 | 1500 | 4500 | 1400 | 2800 | 2250 | 4500 |
2200 | 1000 | 300 | 1300 | 3000 | 1800 | 4500 | 1500 | 3000 | 2450 | 4900 |
2400 | 1000 | 300 | 1300 | 3000 | 1800 | 5400 | 1600 | 3200 | 2650 | 5300 |
Note | 1.Type "A" Tee : (1).°¡Áö°ü D300mm ÀÌÇÏÀÏ °æ¿ì. (2).°¡Áö°ü D400mm ÀÌ»ó °æ¿ì ÁÖ°ü ±æÀÌ´Â º¯°æ µÉ ¼ö ÀÖÀ½. (ÇöÀå Á¶°Ç¿¡ µû¶ó...,) 2.Type "B" Tee : º´¿ºÎ¼³ ½Ã Àû¿ëµÇ´Â ±Ô°Ý 3. 45¡É Elbow, 90¡É Elbow ±æÀÌ´Â ±âº» Á¦ÀÛ±âÁØÀ̸ç, ÇöÀåÁ¶°Ç¿¡ µû¶ó º¯°æµÉ ¼ö ÀÖÀ½. |
